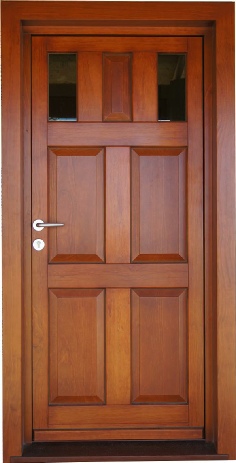

Exterior Doors
Why Choose European Design Entry Doors?
Visual Appearance
- Adds substantial curb appeal to the home.
- Conveys a feeling of warmth and hospitality.
- Natural beauty of wood that can’t be duplicated by man-
made materials.
Energy Efficient
- 78mm thick timber frame, (3/16”) Door & Jamb provide thermal efficiency and security.
- Durable dowel construction techniques provide a solid, long lasting product.
- European style drip ledge diverts weather away from threshold and seals.
- Environmentally friendly, renewable, and lowest embodied energy rating.
- Thermally insulated floating panels for durability and comfort.
- Allow for expansion/contraction throughout the seasons, protected with a double seal system and internal ventilation.
- Dense foam insulation sandwiched inside floating panels.
- Frictionless double seals for superior thermal efficiency.
- Both seals wrap door perimeter completely like a refrigerator door providing a positive seal when closed, preventing abnormal seal wear.
- Primary seal blocks all weather and wind, reduces thermal transfer and sound transmittance.
- Interior seal traps air and noise between primary seal and interior of home for highest performance.
- Triple pane glass, high rating of energy efficiency than double pane and provides a quieter, more comfortable indoor atmosphere with a much lower risk of condensation. See below for more details or visit our Resources page.
High Quality Hardware
- 3-
D hinges offer three dimensional adjustability for perfect door alignment.
- Equal wight loading built into hinges for proper weight transfer to wall.
- Smooth and effortless operation, even with the heaviest of doors and self lubricating.
- European gear driven mortise lock with burglar resistant mushroom cams.
- Superior security from burglary with two rotation gear and mushroom cams to aid against prying.
- Improved sealing against elements as mushroom cams pull door tight and even when lock engaged.
- Security locking cylinder with hardened anti-
drill pins and unique key identifiers, made in Italy. - Numerous lever handle choices available in several finish options from reputable manufacturers. Full back plates available along with individual roses for handles and locking cylinders.
Many Options Available!
- Unlimited finish choices are available with both our stained and solid tone finish systems. Visit our Resources page to learn more about our Exterior Finish Systems.
- 8 standard stain finish colors to choose from.
- Custom stain finishes available.
- Solid tone finishes available from RAL color chart.
- Custom matched solid tones available to meet any need.
- Exterior grade wood species offer the greatest protection from the harsh extremes of the environment by resisting rot, decay, expansion, and insects.
- 5 standard wood species available to choose from. Please visit our Timber Characteristics page to learn more about these. Best choices for solid tone finishes would be Accoya and Red Grandis. All are excellent for stained finishes.
- Unlimited design options allows our doors to be completely customizable.
- 27 standard door designs to choose from, of which all can be altered to meet your needs.
- Single side light, double side lights, side lights with transom overhead can all be achieved. Tilt & Turn Windows can also be integrated into larger openings with side lights.
- Custom sizes aren’t a problem, including non-
standard shapes such as angular or arched.
All Exterior Doors Made In Graham County, Kansas!
Lift & Slide Doors
Function
- Closed position lowers sliding door onto its double seals, both at the top and bottom tracks. It also brings the door into the jamb and meeting stile central point double seals.
- Lift position unlocks and lifts the sliding door up and away from its seals with a 180° motion of the handle. This provides frictionless movement and long lasting sealing for many years of service. Door can be lowered at any point on the track to hold it stationary.
- Slide function allows the door to move effortlessly across the entire opening after it is lifted. This design can accommodate large openings up to 22’ with a single sliding panel, or multiple sliding panels for even larger openings that can reach to 44’ in width.
Design Benefits
- Superior efficiency and increased performance over traditional sliding doors due to many great features.
- 78mm thick timber frame for excellent thermal properties and robust frame strength to support the massive weight of large openings with moveable and stationary door panels up to 10’ tall and 11’ wide each.
- Triple pane glass, high rating of energy efficiency than double pane and provides a quieter, more comfortable indoor atmosphere with a much lower risk of condensation. See below for more details or visit our Resources page.
- Many layout design choices to choose from. Single operating panels to multiple operating and fixed panels.
- Frictionless double seals on all points of contact, including dividing central points between operating panels.
- Additional brush seals limit air movement by creating decompression chambers on outer vertical components, while protecting seals from weather, debris, and insects.
- Additional top seal to further insulate and seal out weather and debris.
- Composite threshold for excellent durability from weather and normal wear, plus thermal isolation.
- Security locking cylinder with hardened anti-
drill pins and unique key identifiers, made in Italy.
Many Options Available!
- Many handle choices available in several finish options from reputable manufacturers.
- Unlimited finish choices are available with both our stained and solid tone finish systems. Visit our Resources page to learn more about our Exterior Finish Systems.
- 8 standard stain finish colors to choose from.
- Custom stain finishes available.
- Solid tone finishes available from RAL color chart.
- Custom matched solid tones available to meet any need.
- Exterior grade wood species offer the greatest protection from the harsh extremes of the environment by resisting rot, decay, expansion, and insects.
- 5 standard wood species available to choose from. Please visit our Timber Characteristics page to learn more about these. Best choices for solid tone finishes would be Accoya and Red Grandis. All are excellent for stained finishes.

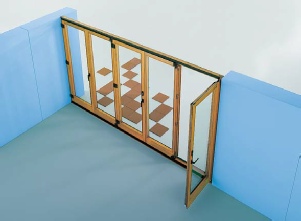

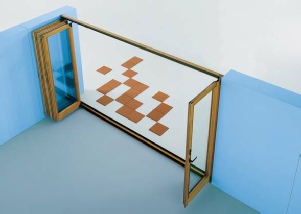

Fold & Slide Doors
Features
- Slide doors out of the way once main swing door is opened. Door sets consist of one standard door and at least one Folding & Sliding door.
- Great for entertainment areas where large expansive openings would be desired with no obstructions.
- Similar to our Exterior Doors, same great features of construction, energy efficiency, double seals, triple pane glass, finish, wood species, and more…
- Openings from 2 to 7 panels are achievable with a max opening of 22 feet.
- Corrosion resistant hardware with high quality bearings and pivots.
All Exterior Door Benefits:
Triple-
- Argon gas fill at a minimum of 90%. Capillary tubes may be required for high altitude areas.
- Multiple LoE coatings of the highest quality on specific sides of the triple pane unit to fit your climate needs.
- Endur IG™ warm edge spacers reduce thermal transfer and formation of condensation.
- Preserve™ protective film protects glass inside and out during construction and installation.
- Neat® naturally clean exterior glass helps keep glass cleaner, available as an option.
- Many extra options available such as divided lites, tempering, laminating, etc.
Warranty -
- 5 yrs on complete door unit, including finish when properly maintained.
- 10 yrs on hardware and gaskets.
- 20 yrs on sealed insulated glass unit.
- Maintenance plans available!
Please Contact Us to learn more about these great exterior doors!
